Features of Gear Cutting Hobs

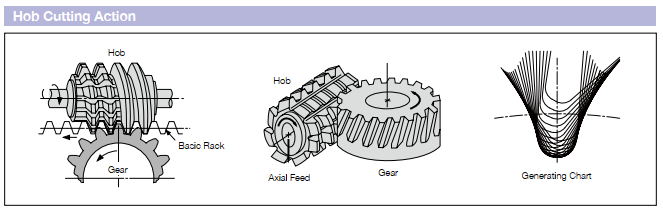

1, Cutting action for module gear hobbing,

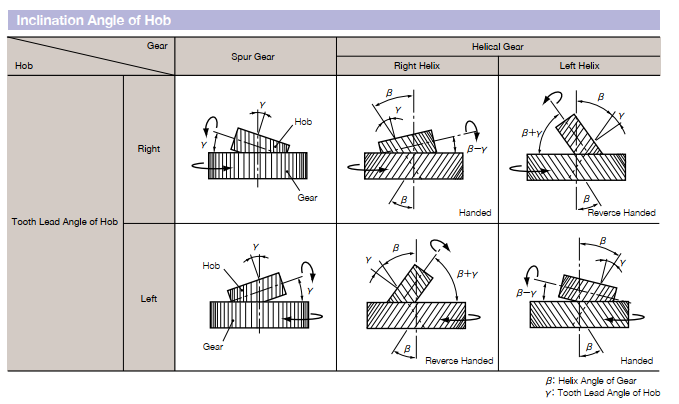

2, Inclination angle of gear hob Cutter,

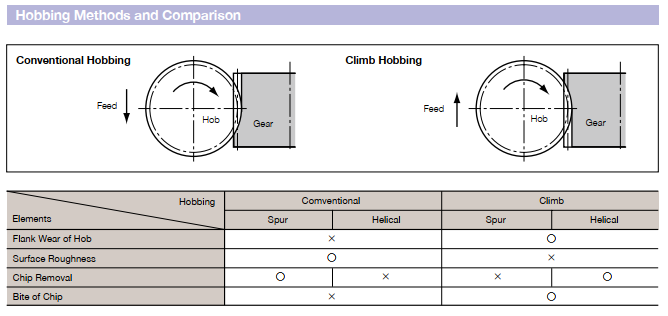

3,Methods and Compaison for Gear Hobber Cutter,
please contact us for more details on high precision gear cutting hobs.
