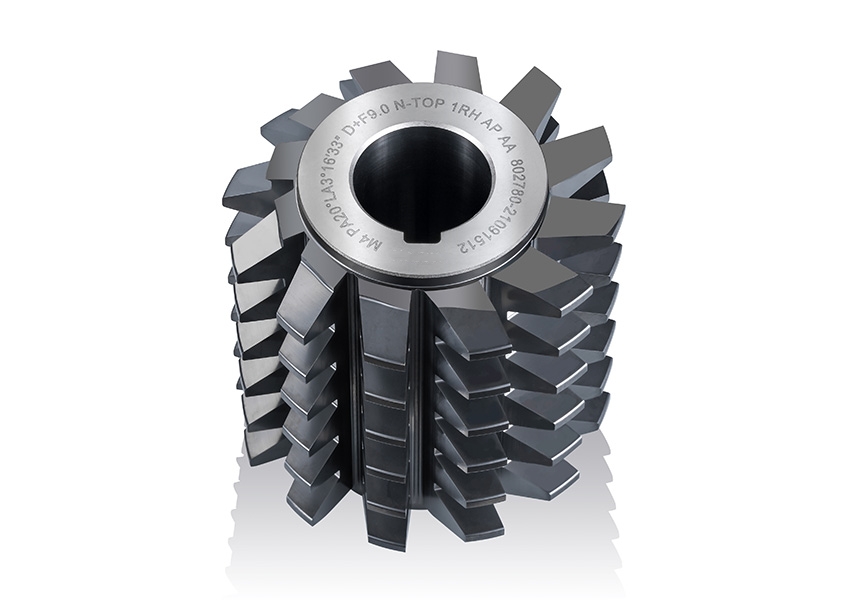

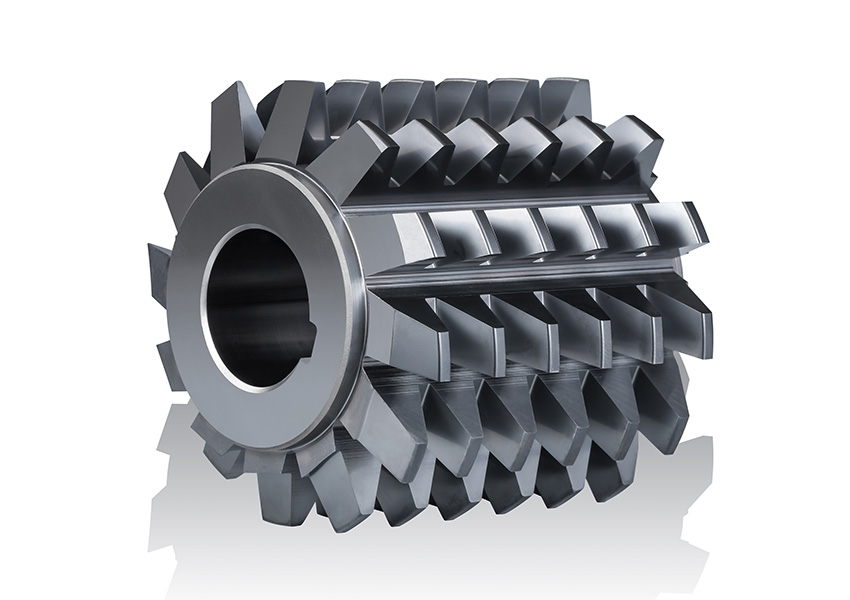

K40/K42 Solid Carbide Gear Hob Cutter for Oil-Cooling Cutting

base material: K40, K42, cold heading die-casting tungsten cobalt alloy

bore type solid carbide hob cutter with BALINT ALCRONA PRO coating

solid carbide hobs for high speed gear hobbing, large size optimal seclection

recommended linear speed 150m/min-200m/min

recommended hob feed 0.5-0.8mm/r

oil cooling cutting environment

recommended hardness of processed material ≤HRC40°

accuracy class DIN AA, AAA

solid carbide gear hobs with bore 8mm, 10mm,13mm, 16mm, 22mm, 27mm, 32mm and 40mm

tooth profile is standard DIN3972, topping or non-topping
