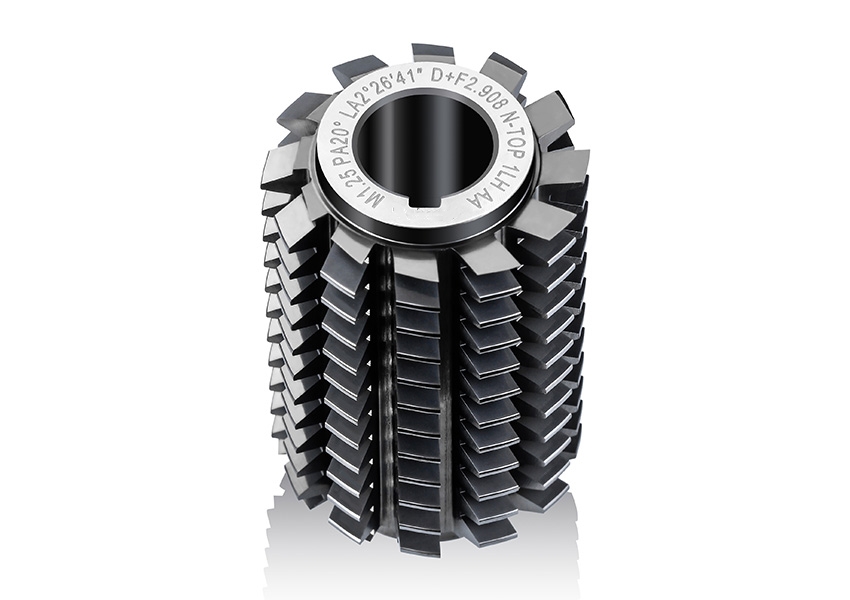

High Speed Dry Cutting Hob with Carbide K44+AP

base material: solided cemented carbide from Konrad, Germany

bore type carbide hob, K44+AP coating(BALINT ALCRONA PRO)

high efficient optimal seclection, for high speed gear hobbing

recommended linear speed: 150m/min~300m/min

recommended hob feed: 0.5-0.8mm/r

dry and oil cooling cutting environment

recommended hardness of processed ≤45°

accuracy class DIN AA, AAA

bore of carbide hobs is 8mm, 10mm, 13mm, 16mm, 22mm, 27mm and 32mm

module rangle: m0.5-m2.5, OD 25-80mm, patterns: for finishing use

tooth profile for topping, or non-topping
