GB 6083 Standard Gear Hobs with M2+TiN
2023-04-15 14:03:00
jiangxingTools
3046

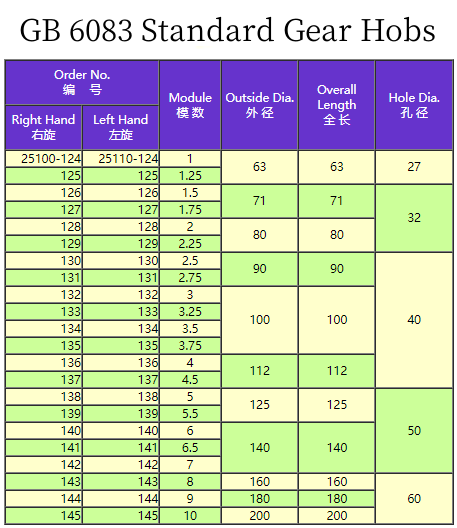

GB 6083 Standard Gear Hobs with M2+TiN
tooth profile is GB 6083 standard
module rangle: m1-m10, 20° PA
gear hob for finishing cut of spur and helical gears.
Quality Class A, AA, Material: M2+TiN coating
Standard gear hobs with bore 27mm, 32mm, 40mm and 60mm
Dp gear hobs can also be ordered as request.
