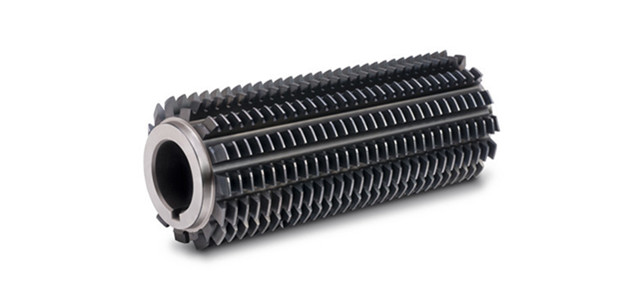

DP Gear Hob Cutter

Module: DP3-DP24,PA20

Standard gear hob for finishing cut

Profile is according to DIN3972 tooth profile standard

Quality: Class A,AA DIN3968

Material: HSS M2,M35,S390+TiN,AP coating

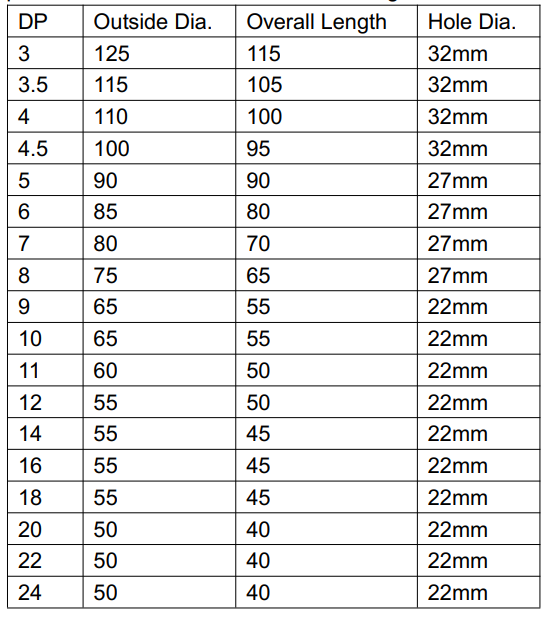

Specification of standard gear hob Dp3-Dp24 with PA20 for finishing as following:

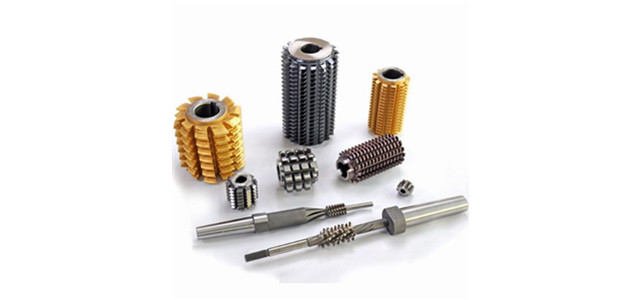

The complete range of hobs produced by us, besides large modules hobs, is completed by

- Solid gear hobs from mod 0.5 -mod.22mm

- Spline hobs (parallel or involute such ASA)

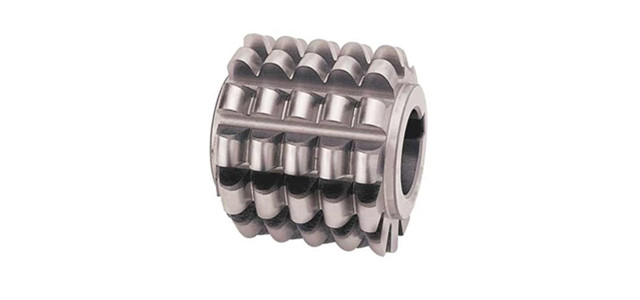

- Roller chain hobs

- Carbide hobs

- Worm wheel hobs, shank type or bore type

- Pulley hobs

- HM hobs

The precision class of hobs obviously is regulated by international standards such Din 3968 (class A and class AA)

Any special requests on dp gear hob cutter, please contact us for more details.
